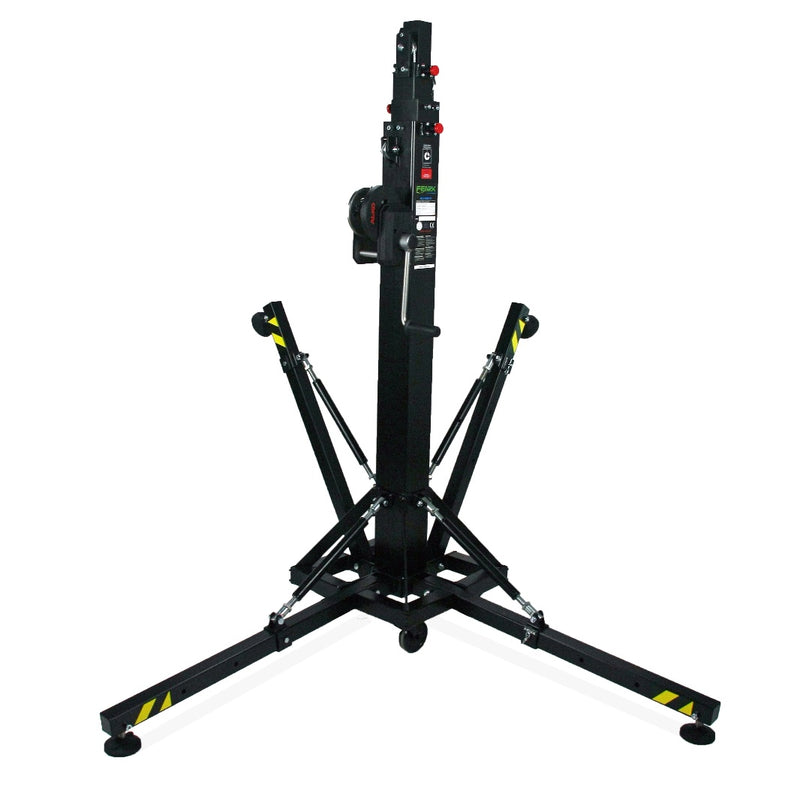

ELV-230/5 | Telescopic lifting tower with adjustable leg system. Black colour

Vendor FENIX Stage

ELV-230/5 Telescopic lifting tower.

ELV Series towers have a special ‘outrigger’ system that can work almost anywhere. Its leg tensioners allow installation at any angle, resting securely on any surface. The swing-arm plates guarantee stability of the tower.

Uses: Ideal for indoor events, the adjustable leg system allows you to install the tower almost anywhere.



Features:

  • Made of steel.
  • Available colour: Black.
  • It is well suited to any surface.



  • Maximum height: 5,30m

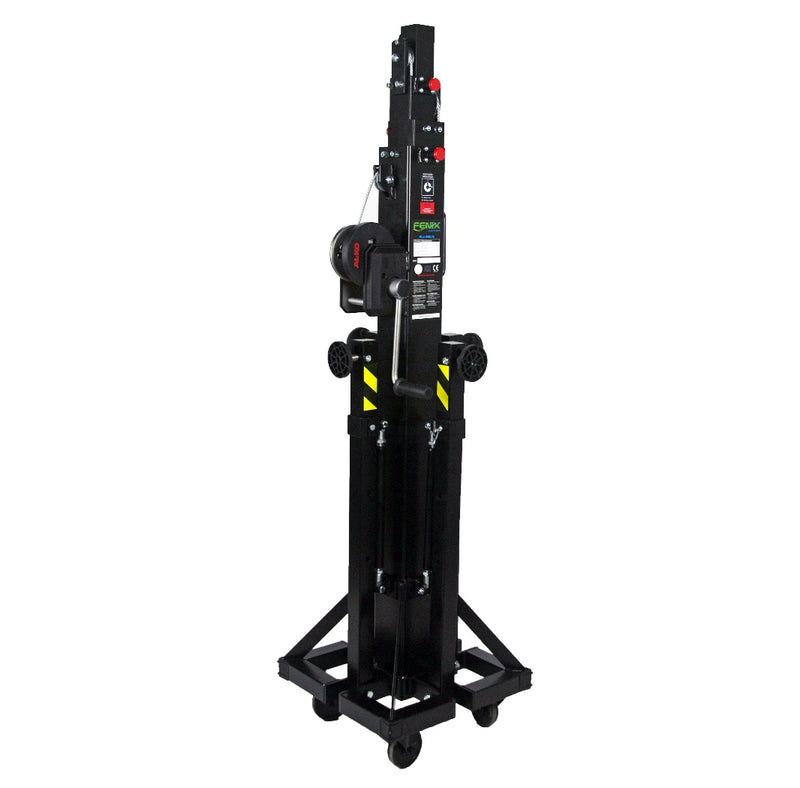

  • Height folded: 1,82m
  • Maximum load: 230kg
  • Maximum height: 5,30m
  • Height folded: 1,82m
  • Maximum load: 230kg
  • Minimum charge: 25kg
  • Workspace: 1,53 x 1,53m
  • Closed base area: 0,49 x 0,49m
  • Weight: 88kg
  • Winch: AL-KO 900 Compact 900kg
  • Cable: Galvanized steel under EN 12385-4.
  • Maximum cable load: 2.870kg
  • Cable twisting resistance : 1.770N/mm²
  • Cable diameter: 6mm
  • Cable composition: 7x19+0
  • Security system: External trigger in sections
  • Leg attachment: Safety pins
  • Bubble level: to vertically adjust the tower.

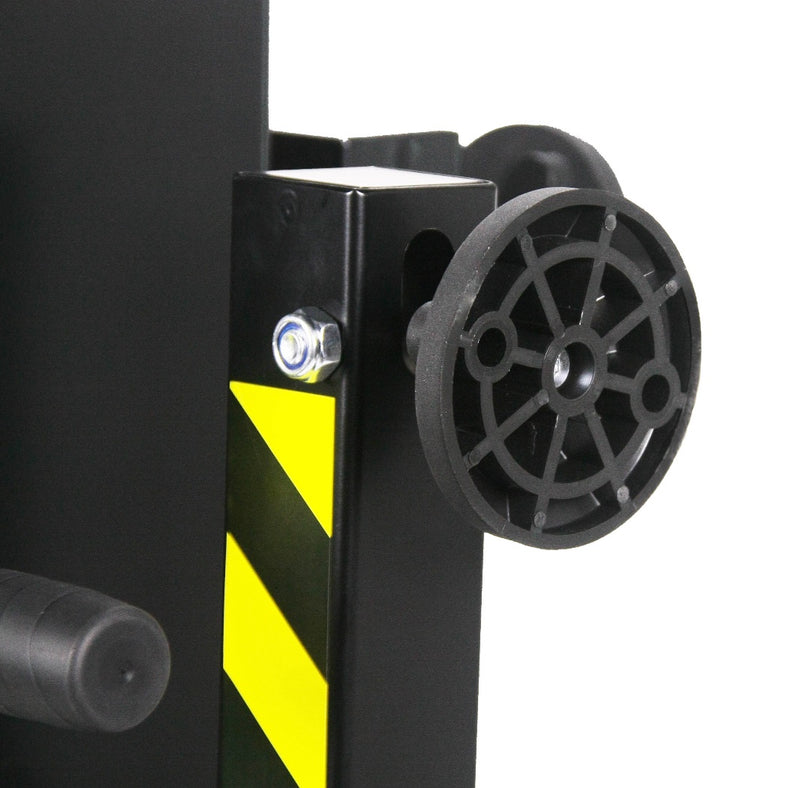

Polyamide plates: This raw material offers more resistance than metal and it is wear free. The Polyamide plates can rest against any surface without damaging it, carpet, tiles, etc.

Safety pins: Safety pins stop the load from falling down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs the towers lifetime and increases its stability..

Swing-arm plates: The ELV Series’ new swing-arm plates can rest completely flat against any surface (walls, inclines, etc) achieving better stability thru improved contact.

Leg's tension tube and tilting system: The plates, together with the leg’s tension tube adjuster and its tilting system, allow the tower to rest upon any surface or fixed object.

Winch: Our winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.

Reinforced base: All our towers use a reinforced iron base that supports heavy loads and high heights.

Level: The new location of the level helps you stabilize the tower more comfortably and accurately.
