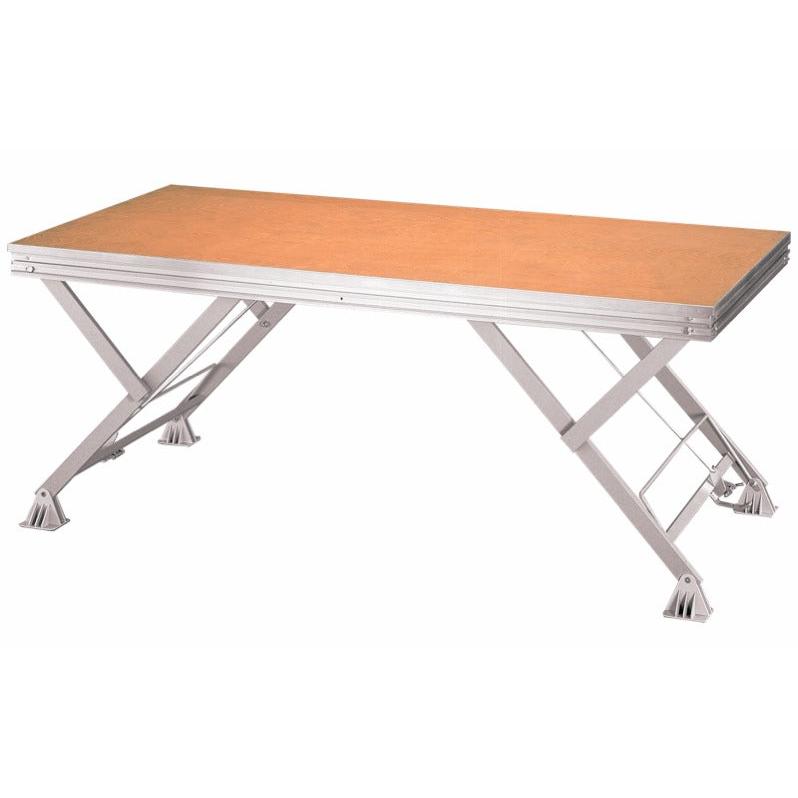

Mott Universal Scissor stage platforms – The Versatile Mobile Stage.
The Universal Scissor adjustable stage platform is a true all-rounder among mobile stage platforms. With its Y-shaped scissor fittings, it is perfectly suited for stages, grandstands, catwalks, and platforms – usable both indoors and outdoors. Its flexible height adjustment, stable construction, and quick assembly make it an excellent choice for professional event setups.
Note: This platform is supplied without stage floor. Don’t forget to choose the flooring option that best suits your needs.
Flexible Height Adjustment:
The Universal Scissor platform allows for variable height adjustment in five steps – from 20 cm to 100 cm, in 20 cm increments. At any height, the platform can also be tilted, making it ideal for sloping stage layouts or audience seating.
-
Platform size: 100 × 200 cm (usable area: 2 m²)
-
Load capacity: 750 kg/m² (TÜV tested)
-
Stacking height (folded): 20 cm
-
Weight: from 60–64 kg (depending on version)
With its robust steel base in stone-grey powder coating (RAL 7030) and reliable scissor fittings, the platform guarantees long-term stability and safe use.
Choose Between Two Versions – Foot or Hand Release
The Universal Scissor Lift is available in two release systems for easy and safe setup:

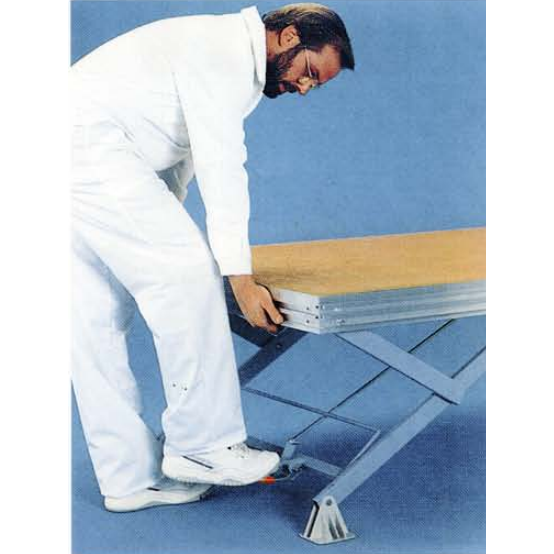

1. Foot Release Version
- Adjustment heights: 20 / 40 / 60 / 80 / 100 cm
- Height can be adjusted while the platform is stationary, without reversing
- Continuous support brackets ensure stability at 40 cm
- Weight with beech blockboard: approx. 61 kg
- Optional welded-in center brace for extra reinforcement

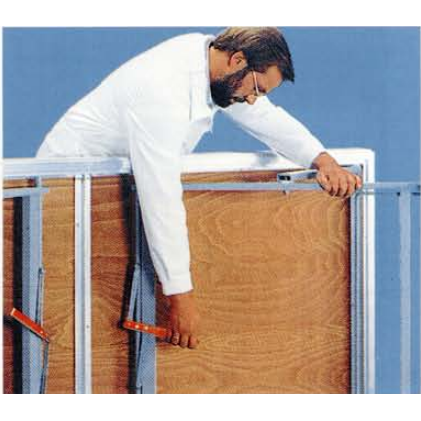

2. Hand Release Version
- Adjustment heights: 20 / 40 / 60 / 80 / 100 cm
- Quick and easy setup using the red lever release
- Optional non-slip plastic feet available
- Provides good swing characteristics (e.g., for sporting events)
- Weight with beech blockboard: approx. 61 kg
