Mott TOP 05 (fixed)

Mott Mobile Systeme GmbH & Co. KG
19 352 SEK
19 352 SEK 19 352 SEK
Sale Sold out
/
This is a pre order item. We will ship it when it comes in stock.
Note on production time & shipping

We supply the full range of Mott products, including stage platforms, stairs, safety railings, transport trolleys, spare parts, and accessories. From standard sizes to fully custom-built solutions, we can provide the right product for your requirements.

Most spare parts and accessories are available from stock. For stage platforms and larger items, production times depend on the specific order. Please contact us for current lead times, especially if your project is time-sensitive.

Shipping Not Included at Checkout: To provide the most accurate shipping cost based on your order, we will send you a personalized quote after checkout. This quote will include a payment link for your convenience.

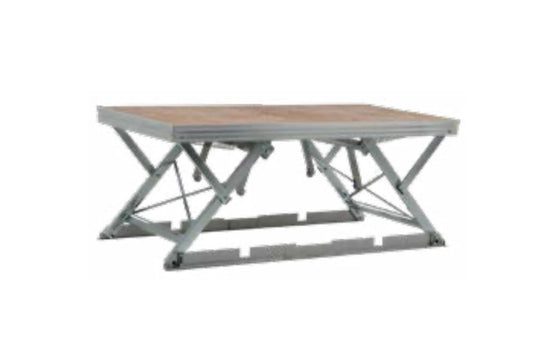

Scissor stage platform Mott "TOP 05" with release from above, dimension 200x100 cm.

FIXED INSTALLATION. CONTACT US FOR QUOTES.



No more heavy lifting – the fixed scissor stage:

The permanently installed scissor stage Top 05 is mechanically height-adjustable from 20 to 80 cm above hall floor level. Within minutes, it transforms into an event stage without the need to carry any elements. When not in use, it lowers into the pit floor and serves as a robust floor surface. The gap between elements is only 4 mm. With the lifting aid, a pulling force of just 9 kg per person is sufficient to raise the stage from the "zero position" to the desired height. Operation is simple, using a release key from above.

Optionally available: If no pit floor is present and the platforms rest on a substructure, a running surface must be installed for the lifting aid.
Important: Installation of the edge trim must only take place after the stage has been installed.



Note: This platform is supplied without stage floor. Don’t forget to choose the flooring option that best suits your needs.

  • Incl. 1 x Quick connector short and all shims
  • Scissors fittings with continuous support brackets for stage height 20 cm
  • Stage frame with additional brace
  • Tested according to Equipment and Product Safety Law DIN 4112 with 700 kg per stage platform
  • Without assembly
  • Without underconstruction for mounting of stage platforms
  • Assembly of edging follows after mounting of stage platforms
  • Rectangular, flat and swept clean floor
  • Well accessible transport and assembly pathways



The installation effort and the time required decreases when a straight substructurefor the contact points of the stage platforms is mounted in the pit floor. Therefore stage platforms can be fixed on this subnstructure.

  • Area (W × D): 100 × 200 cm
  • Weight: from approx. 104 kg
  • Usable area: 2 m²
  • Pit depth: from 16 cm
  • Load capacity: 750 kg/m²
  • Height adjustment range: 20 cm to 80 cm (in 20 cm increments)

Construction height starting at 16 cm, adjustable to 18 cm, with lift aid, lifting weight approx. 9 kg per person, adjustable heights 20, 40, 60 und 80 cm (from top of floor),nscissor fittings with cross straps, steel parts deep black powdercoated according to RAL 9005.
