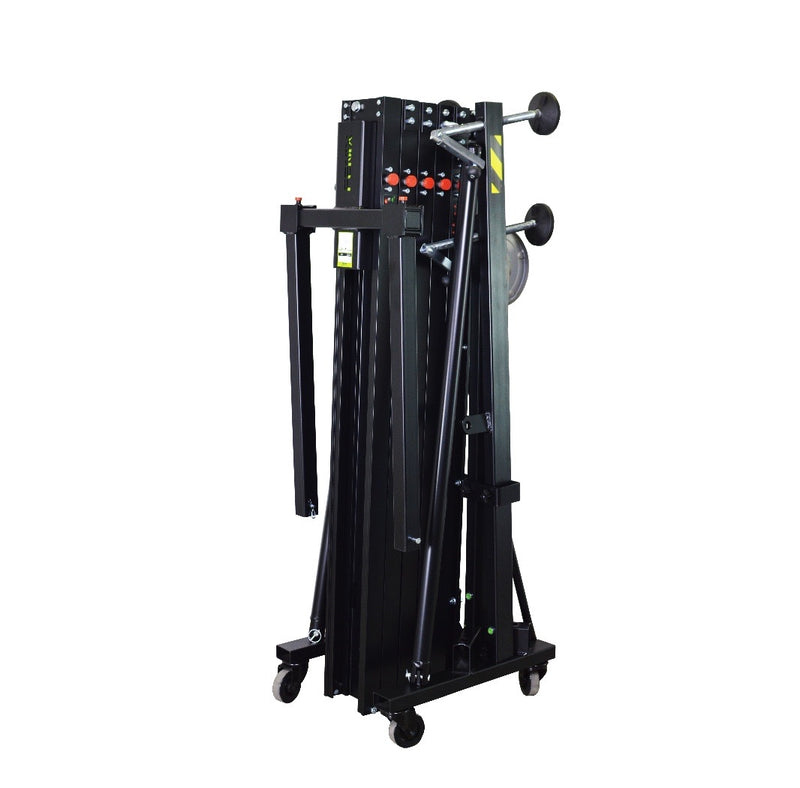

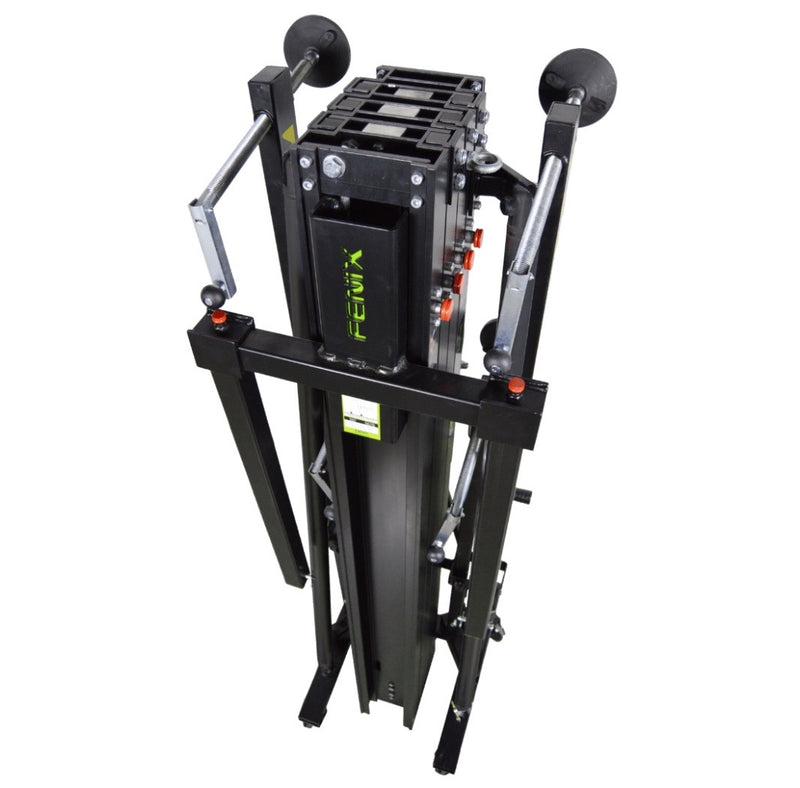

HERCULES 6.5 PLUS | Aluminium frontal loading tower. Black colour

Vendor FENIX Stage

HERCULES 6.5 PLUS lifting tower, the tower with the most load capacity: 500kg.

Super frontal loading lifting tower. HERCULES Series, powerful and easy to use.

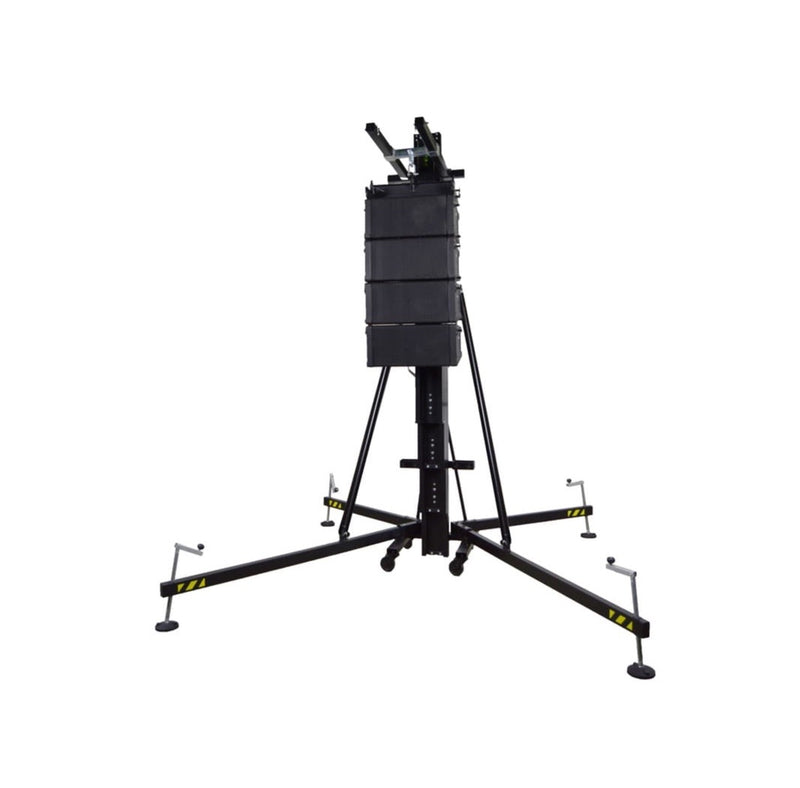

Uses: For lifting line array systemstrussing or LED screens.



Features:

  • All HERCULES towers lift the load from the floor and are height adjustable.
  • Made of aluminium.
  • Available colour: Black.



  • Maximum height: 6,50m
  • Height folded: 1,69m
  • Maximum load: 500kg
  • Maximum height: 6,50m
  • Height folded: 1,69m
  • Maximum load: 500kg
  • Minimum charge: 25kg
  • Material: Aluminum alloy AL Si 6106 / T6
  • Workspace: 2,22 x 2,07m
  • Closed base area: 0,52 x 0,62m
  • Weight: 198kg
  • Winch: AL-KO Type OPTIMA 1150kg
  • Cable: Galvanized steel under EN 12385-4.
  • Maximum cable load: 2.870kg
  • Cable twisting resistance : 1.770N/mm²
  • Cable diameter: 6mm
  • Cable composition: 7x19+0
  • Security system: Inner pendulum and external trigger in sections.
  • Leg attachment: Safety pins
  • Bubble level: to vertically adjust the tower.

Leg base safety lock​: The automatic leg locking system allows the outriggers to anchor easily in the correct place, doing away with old and uncomfortable safety pin rings.

Polyamide plates: The plates are made of Polyamide. This raw material offers more resistance than metal and it is wear free. The Polyamide plates can rest against any surface without damaging it, carpet, tiles, etc.

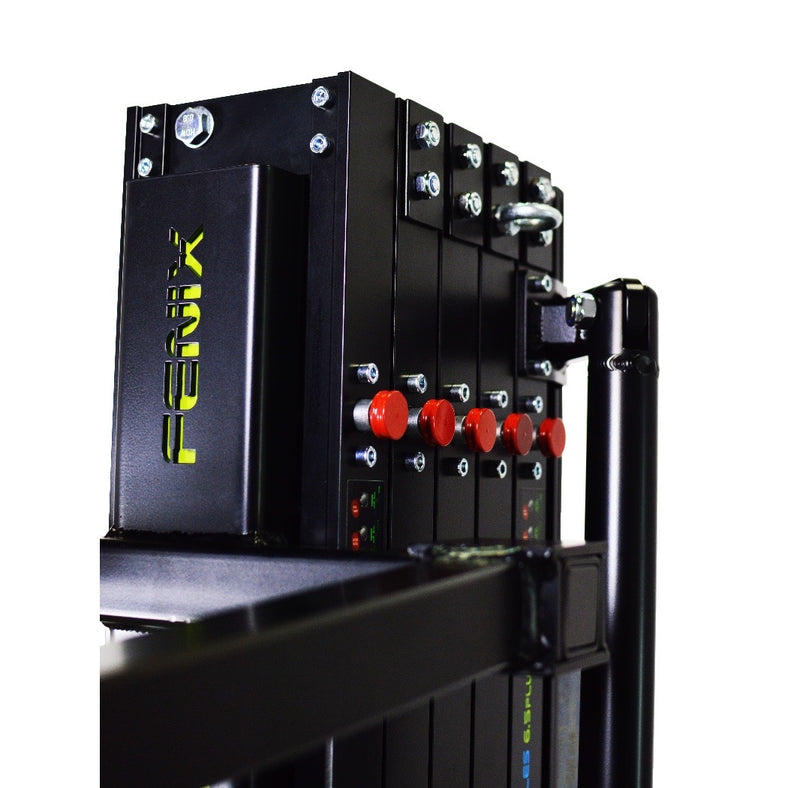

Safety pins: Safety pins stop the load from falling down. You can select different tower heights safely by raising the bars equally, this distributes the load evenly from the main bar to the last bar. Ultimately this prolongs the towers lifetime and increases its stability.

Circular bubble level: The location of the bubble level at the base helps you to stabilise the tower easily and accurately.

Reinforced base: All our towers use a reinforced base that supports heavy loads and high heights.

Ring: It is included on the AT and HERCULES Series towers to enable additional support cables or straps to be tied directly to the tower, increasing tower safety.

Winch: Our winches are manufactured by industry leading companies. They are resistant and durable as well as oversized for additional safety and better cable pull.

Fixing: Prevents the carriage from moving during transportation.

Safety pendulum: All frontal loading lift towers include an internal safety system that automatically blocks the tower if a sudden drop is detected, e.g. if the cable broke or was cut.

Frontal braces: Give a greater stability and resistance to the tower.
