SKU: 11070

Mott Justo Structural System

Regular price 1 323 SEK
Sale price 1 323 SEK Regular price 1 323 SEK
Sale Sold out
Unit price
/per
This is a pre order item. We will ship it when it comes in stock.
Note on production time & shipping

We supply the full range of Mott products, including stage platforms, stairs, safety railings, transport trolleys, spare parts, and accessories. From standard sizes to fully custom-built solutions, we can provide the right product for your requirements.

Most spare parts and accessories are available from stock. For stage platforms and larger items, production times depend on the specific order. Please contact us for current lead times, especially if your project is time-sensitive.

Shipping Not Included at Checkout: To provide the most accurate shipping cost based on your order, we will send you a personalized quote after checkout. This quote will include a payment link for your convenience.

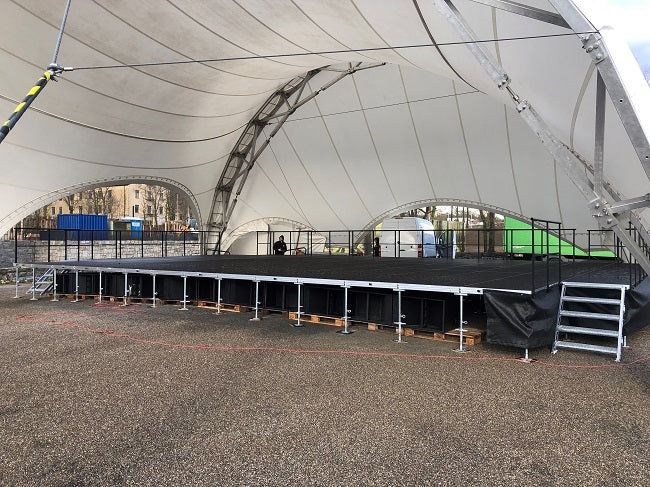

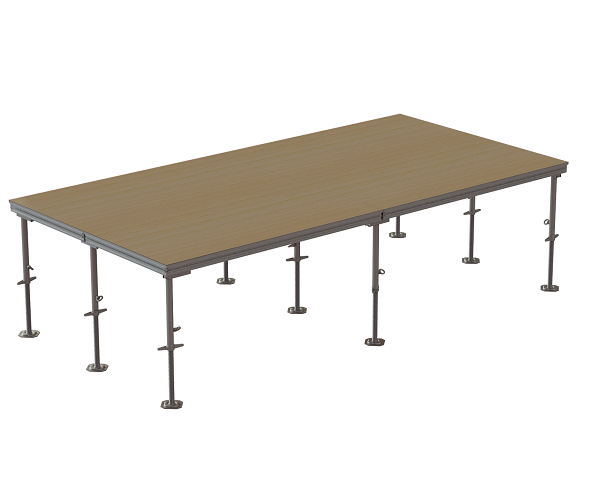

The Mott Justo structural system is a professional support solution for the Praktikus platform series (750, Light, 1000). Designed for demanding outdoor and indoor applications, it combines scaffolding-based technology with plug-in leg functionality to deliver maximum stability and efficiency.

Height-adjustable spindles allow quick compensation for uneven or sloping ground, while the concealed frame design ensures a clean stage surface with no protruding parts. A key advantage of Justo is the reduced number of legs required: for a 4 × 6 m stage only 20 legs are needed instead of 48. The legs also serve as connectors between stage elements, eliminating the need for additional clamps.

The system is fully compatible with Praktikus platforms, enabling tool-free assembly and reliable use year-round in both outdoor and indoor environments.



Available Options:

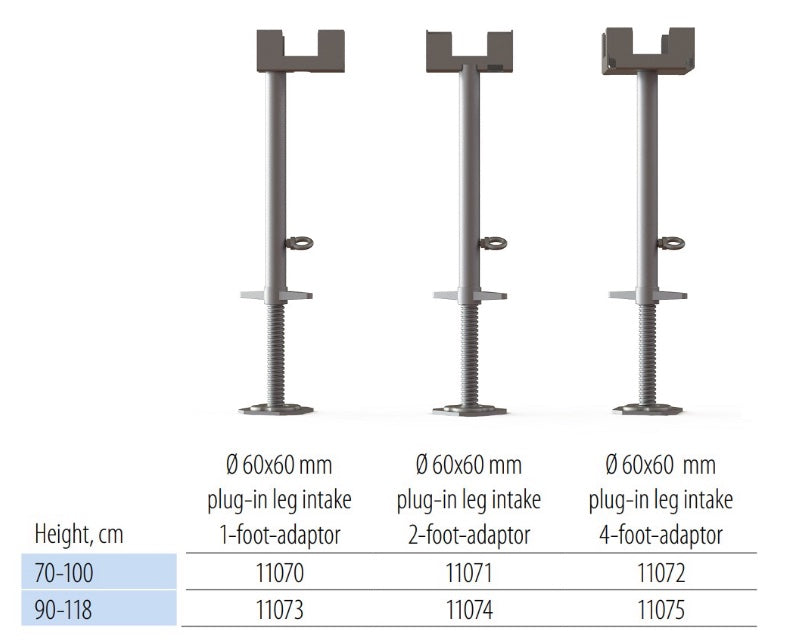

Structural system "Justo", for stage height 1 (approx. 70-105 cm), incl. spindle leg, suitable for Praktikus stages, steel parts galvanized:

Article no./ Dimensions:

  • 11070 1-foot-adaptor, height 70-105cm
  • 11071 2-feet-adaptor, height 70-105cm
  • 11072 4-feet-adaptor, height 70-105cm



Structural system "Justo", for stage height 2 (approx. 90-120 cm), incl. spindle leg, suitable for Praktikus stages, steel parts galvanized:

Article no./ Dimensions:

  • 11073 1-foot-adaptor, height 90-12cm
  • 11074 2-feet-adaptor, height 90-120cm
  • 11075 4-feet-adaptor, height 90-120cm



On demand: Justo with scaffolding castors.

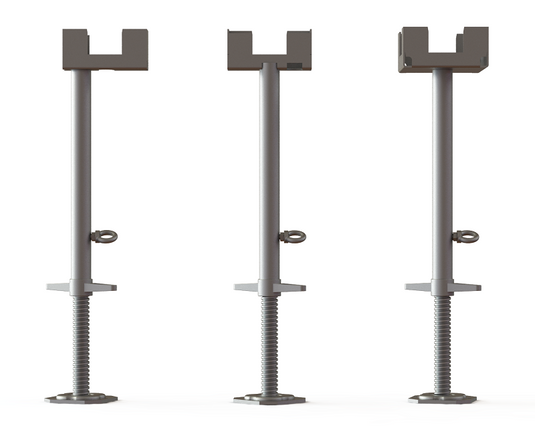

  • Holders: 1-way, 2-way, 4-way with spindle base
  • Plug-in leg intake: 60 × 60 mm
  • Adjustable stage heights: 0.70–1.00 m or 0.90–1.20 m
  • Application: Outdoor / year-round
  • Standard: Built according to DIN 15921
  • Compatible platforms: Praktikus series
Description

The Mott Justo structural system is a professional support solution for the Praktikus platform series (750, Light, 1000). Designed for demanding outdoor and indoor applications, it combines scaffolding-based technology with plug-in leg functionality to deliver maximum stability and efficiency.

Height-adjustable spindles allow quick compensation for uneven or sloping ground, while the concealed frame design ensures a clean stage surface with no protruding parts. A key advantage of Justo is the reduced number of legs required: for a 4 × 6 m stage only 20 legs are needed instead of 48. The legs also serve as connectors between stage elements, eliminating the need for additional clamps.

The system is fully compatible with Praktikus platforms, enabling tool-free assembly and reliable use year-round in both outdoor and indoor environments.



Available Options:

Structural system "Justo", for stage height 1 (approx. 70-105 cm), incl. spindle leg, suitable for Praktikus stages, steel parts galvanized:

Article no./ Dimensions:

  • 11070 1-foot-adaptor, height 70-105cm
  • 11071 2-feet-adaptor, height 70-105cm
  • 11072 4-feet-adaptor, height 70-105cm



Structural system "Justo", for stage height 2 (approx. 90-120 cm), incl. spindle leg, suitable for Praktikus stages, steel parts galvanized:

Article no./ Dimensions:

  • 11073 1-foot-adaptor, height 90-12cm
  • 11074 2-feet-adaptor, height 90-120cm
  • 11075 4-feet-adaptor, height 90-120cm



On demand: Justo with scaffolding castors.

Technical Data
  • Holders: 1-way, 2-way, 4-way with spindle base
  • Plug-in leg intake: 60 × 60 mm
  • Adjustable stage heights: 0.70–1.00 m or 0.90–1.20 m
  • Application: Outdoor / year-round
  • Standard: Built according to DIN 15921
  • Compatible platforms: Praktikus series
